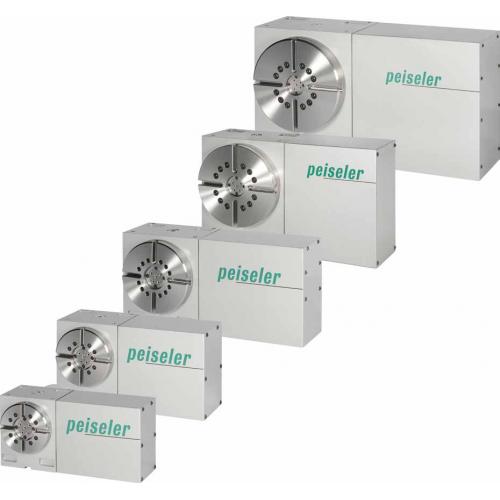

ATC Series: Technical Data|
|
ATC 125
|
ATC 160
|
ATC 250
|
ATC 300
|
ATC 350
|
|
|
Geometry
|
||||||
|
Center height 中心高
|
mm
|
120
|
140
|
150
|
210
|
245
|
|
Diameter of faceplate small / large 盘面直径最小/最大
|
mm
|
140 / 180
|
160 / 220
|
200 / 240
|
260 / 340
|
300 / 450
|
|
Diameter of center bore 中心孔
|
mm
|
64 H7
|
64 H7
|
64 H7
|
64 H7
|
64 H7
|
|
Radial run-out of center bore, max.
中心孔跳动 |
mm
|
0.01
|
0.01
|
0.01
|
0.01
|
0.01
|
|
Center through hole / max. possible
贯穿孔径 |
mm
|
22 / 42
|
22 / 42
|
22 / 45
|
22 / 45
|
22 / 54
|
|
|
||||||
|
Bearing, drive, clamping
|
||||||
|
Diameter of bearing 轴承直径
|
mm
|
115 x 90
|
146 x 80
|
179 x 120
|
230 x 155
|
280 x 185
|
|
Tilting torque, max. 最大倾覆力矩
|
Nm
|
400
|
1,000
|
2,700
|
3,200
|
5,500
|
|
Transport load, max. 垂直方向负载
|
kg
|
120
|
160
|
300
|
400
|
600
|
|
Transport load with counter bearing, max.
水平方向负载 |
kg
|
240
|
320
|
600
|
800
|
1,200
|
|
Diameter of worm wheel 蜗轮直径
|
mm
|
96
|
120
|
157
|
230
|
274
|
|
Indexing accuracy of worm gear 分割精度
|
"
|
+/- 16
|
+/- 11
|
+/- 11
|
+/- 10
|
+/- 7
|
|
Ratio of worm gear蜗轮减速比
|
. / .
|
36 : 1
|
60 : 1
|
60 : 1
|
72 : 1
|
72 : 1
|
|
Speed of faceplate, max. 盘面最大转速
|
rpm
|
166
|
100
|
64
|
50
|
42
|
|
Transmittable torque of worm gear, max.
蜗轮蜗杆最大传动扭矩 |
Nm
|
100
|
215
|
460
|
1,280
|
2,100
|
|
Mass moment of inertia, max.加速度
|
kgm2
|
0.6
|
1.5
|
7.5
|
20
|
25
|
|
Type of clamping 锁紧方式
|
|
pneu. / hydr.
|
pneu. / hydr.
|
pneu. / hydr.
|
pneu. / hydr.
|
pneu. / hydr.
|
|
Required pressure for clamping 动力源
|
bar
|
6 / 90
|
6 / 90
|
6 / 90
|
6 / 90
|
6 / 90
|
|
Clamping torque, max.锁紧扭力
|
Nm
|
600
|
1,000
|
1,600
|
2,500
|
4,000
|
|
|
||||||
|
Net weight, approx. (min. / max.) 净重
|
kg
|
33 / 41
|
40 / 48
|
62 / 71
|
130 / 140
|
201 / 236
|
